clip1033

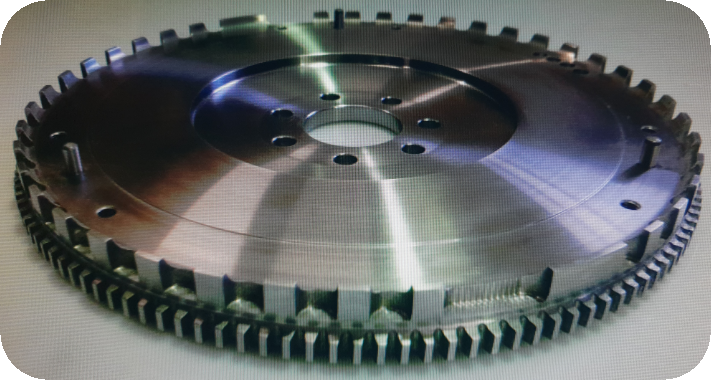

The Renix 44-2-2 flywheel





clip1034

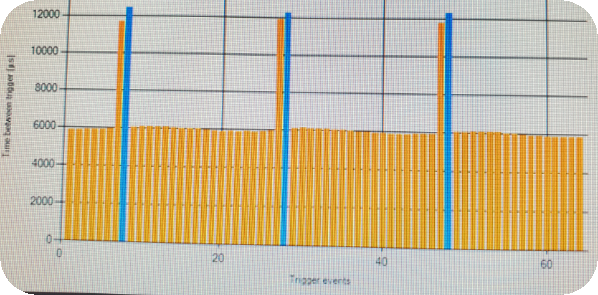

Captured trigger logger from the Renix 44-2-2 crank trigger.





clip1035

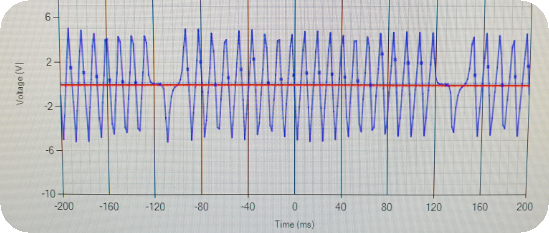

Trigger oscilloscope from the Renix 44-2-2 crank trigger.





Note: The renix crank trigger needs a CAM sync to work in anything else than Simultaneous fuel and Distributor mode.



Renix crank trigger setup without a CAM sync



clip1275

1. Set fuel to Simultaneous.



clip1276

2. Set ignition system type to Distributor
