Pedal to throttle table
A table to achieve different throttle positions in different pedal positions. For example you can get 10% throttle position even if your pedal position is 30% (completely custom able).
Extra adjustments
Multiply throttle by table %
An option to be able to multiply the above pedal to throttle table with an user table (Advanced --> User table).
Add table to throttle %
An option to be able to add duty % to the above pedal to throttle table with an user table (Advanced --> User table).
Examples of pedal to throttle table
In the above example: Pedal position = throttle position.

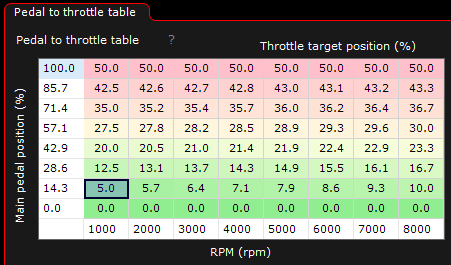

In the above example:
•At 14,3% pedal position and 1000RPM, target throttle position is only 5%.
•At 14,3% pedal position and 8000RPM, target throttle position is 10%.
•at 100% pedal position and ANY RPM, target throttle position is only 50%.
Example of extra adjustments table
First a simple linear pedal to throttle table.
Second, activate an User table to multiply pedal to throttle table values from User table 1.
In this example an MDash switch is used as one axis source.
•When MDash switch 1 is inactive, Pedal to throttle target is multiplied with 1 (100) --> no change of pedal to throttle table.
•When MDash switch 1 is active, Pedal to throttle target is multiplied with 0.5 (50) --> throttle position gets halved.
Note: The above was just some examples to get you an idea of what you can do.
