MaxxECU MINI (32-pin)
Position |
MINI function |
|
A1 |
TRIGGER |
|
A2 |
TRIGGER GND |
|
A3 |
||
A4 |
||
B1 |
DIN 1 (Hall onLY) |
|
B2 |
DIN 2 (Hall only) |
|
B3 |
SENSOR GND |
|
B4 |
SENSOR GND |
|
C1 |
CLT |
|
C2 |
IAT |
|
C3 |
AIN 3 (0-5V) |
|
C4 |
AIN 4 (0-5V) |
|
D1 |
GPO 8/TACHO |
660ohm pullup |
D2 |
TPS |
|
D3 |
GND Shield |
|
D4 |
SENSOR GND |
|
E1 |
GPO 3 |
|
E2 |
+5V sensor supply |
(peak 0.5A, max 150mA) |
E3 |
CAN L |

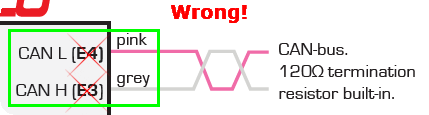

Read important note below if you encounter issues with CAN communications! |
E4 |
CAN H |
Read important note below if you encounter issues with CAN communications! |
F1 |
IGN 1 |
|
F2 |
IGN 2 |
|
F3 |
IGN 3 |
|
F4 |
IGN 4 |
|
G1 |
GPO 2 |
|
G2 |
GPO 1 |
|
G3 |
INJ 1 |
|
G4 |
ENGINE GND |
|
H1 |
INJ 2 |
|
H2 |
INJ 3 |
|
H3 |
INJ 4 |
|
H4 |
+12V (ECU power supply) |
MaxxECU MINI board soldering positions
Soldering positions for the MaxxECU MINI board (ID: 2125.)
MINI Molex parts, pins / terminals and plugs
Part |
Molex Part no |
Quantity |
Connector |
0643193211 |
1 |
Cable cover |
0643191201 |
1 |
Terminal / pin (big 0.5-1mm2) |
643231029 |
8 |
Terminal / pin (small 0.75mm2) |
643221029 |
24 |
MaxxECU STREET/SPORT/V1/RACE/PRO (48-pin connector 1)
Position |
V1/RACE/PRO function |
STREET function |
SPORT function |
|
A1 |
GPO 5 |
|||
A2 |
IGN 1 |
IGN 1 |
IGN 1 |
|
A3 |
IGN 2 |
IGN 2 |
IGN 2 |
|
A4 |
GPO 8/TACHO |
GPO 8/TACHO |
GPO 8/TACHO |
660ohm pullup |
B1 |
GPO 6 |
|||
B2 |
IGN 3 |
IGN 3 |
IGN 3 |
|
B3 |
IGN 4 |
IGN 4 |
IGN 4 |
|
B4 |
GPO 1 |
GPO 1 |
GPO 1 |
|
C1 |
GPO 7 |
|||
C2 |
IGN 5 |
IGN 5 |
IGN 5 |
|
C3 |
IGN 6 |
IGN 6 |
IGN 6 |
|
C4 |
GPO 2 |
GPO 2 |
GPO 2 |
|
D1 |
WBO2 Heater- |
WBO2 Heater- |
WBO2 Heater- |
|
D2 |
IGN 7 |
|||
D3 |
IGN 8 |
|||
D4 |
GPO 3 |
GPO 3 |
GPO 3 |
|
E1 |
CAN H |
CAN H |
CAN H |
|
E2 |
CAN L |
CAN L |
CAN L |
|
E3 |
GND Shield |
GND Shield |
GND Shield |
|
E4 |
GPO 4 |
|||
F1 |
CLT |
CLT |
CLT |
|
F2 |
IAT |
IAT |
IAT |
|
F3 |
WBO2 VREF |
WBO2 VREF |
WBO2 VREF |
|
F4 |
WBO2 VS |
WBO2 VS |
WBO2 VS |
|
G1 |
+5V sensor supply |
+5V sensor supply |
+5V sensor supply |
(peak 0.5A, max 150mA) |
G2 |
TPS/AIN |
TPS/AIN |
TPS/AIN |
|
G3 |
WBO2 IP |
WBO2 IP |
WBO2 IP |
|
G4 |
WBO2 RCAL |
WBO2 RCAL |
WBO2 RCAL |
|
H1 |
Sensor GND |
Sensor GND |
Sensor GND |
|
H2 |
Trigger GND |
Trigger GND |
Trigger GND |
|
H3 |
TRIGGER |
TRIGGER |
TRIGGER |
|
H4 |
HOME |
HOME |
HOME |
|
J1 |
AIN 1 (Temperature) |
AIN 1 (temperature) |
AIN 1 (temperature) |
|
J2 |
AIN 2 (Temperature) |
AIN 2 (Temperature) |
AIN 2 (Temperature) |
|
J3 |
AIN 3 (0-5V) |
AIN 3 (0-5V) |
AIN 3 (0-5V) |
|
J4 |
AIN 4 (0-5V) |
AIN 4 (0-5V) |
AIN 4 (0-5V) |
|
K1 |
INJ 1 |
INJ 1 |
INJ 1 |
|
K2 |
INJ 2 |
INJ 2 |
INJ 2 |
|
K3 |
DIN/VR 1 |
DIN 1 |
DIN 1 |
|
K4 |
DIN/VR 2 |
DIN 2 |
DIN 2 |
|
L1 |
INJ 8 |
|||
L2 |
INJ 7 |
|||
L3 |
INJ 6 |
INJ 6 |
INJ 6 |
|
L4 |
Engine GND |
Engine GND |
Engine GND |
|
M1 |
INJ 3 |
INJ 3 |
INJ 3 |
|
M2 |
INJ 4 |
INJ 4 |
INJ 4 |
|
M3 |
INJ 5 |
INJ 5 |
INJ 5 |
|
M4 |
+12V ECU power supply |
+12V ECU power supply |
+12V ECU power supply |
Text marked in red color indicates a difference between the ECUs.
Molex parts, pins / terminals and plugs
Part |
Molex Part nr |
Quantity STREET |
Quantity STREET/SPORT/V1/RACE/PRO |
Connector |
643203311 |
1 |
1 |
Cable cover |
643201301 |
1 |
1 |
Terminal / pin (big 1-2mm2) |
643231039 |
1 |
1 |
Terminal / pin (big 0.5-1mm2) |
643231029 |
5 |
7 |
Terminal / pin (small 0.75mm2) |
643221029 |
35 |
40 |
MaxxECU RACE connector 2 (32-pin black)
Position |
RACE connector 2 function |
A1 |
egt 5+ |
A2 |
egt 6+ |
A3 |
egt 7+ |
A4 |
egt 8+ |
B1 |
egt 5- |
B2 |
egt 6- |
B3 |
egt 7- |
B4 |
egt 8- |
C1 |
EGT 1 + |
C2 |
EGT 2+ |
C3 |
EGT 3+ |
C4 |
EGT 4+ |
D1 |
EGT 1- |
D2 |
EGT 2- |
D3 |
EGT 3- |
D4 |
EGT 4- |
E1 |
KNOCK GND |
E2 |
Knock 1 |
E3 |
knock 2 |
E4 |
AIN 6 (0-5v) |
F1 |
ain 7 (0-5v) |
F2 |
ain 8(0-5V) |
F3 |
din/vr 4 |
F4 |
din/vr5 |
G1 |
gpo 15(+12v) |
G2 |
gpo 16 (+12v) |
G3 |
ain 5 (0-5V) |
G4 |
eNGINE GROUND |
H1 |
mOTOR 2+ |
H2 |
mOTOR 1- |
H3 |
mOTOR 2- |
H4 |
mOTOR 1+ |
EGT pins are regular pins and contacts. Cold junction compensation is done by a temperature sensor in thermal contact with these pins.
Part |
Molex Part nr |
Quantity |
Connector |
0643193211 |
1 |
Cable cover |
0643191201 |
1 |
Terminal / pin (big 0.5-1mm2) |
643231029 |
8 |
Terminal / pin (small 0.75mm2) |
643221029 |
24 |
MaxxECU PRO connector 2 (32-pin grey)
Position |
PRO connector 2 function |
A1 |
EGT 1+ |
A2 |
EGT 2+ |
A3 |
EGT 3+ |
A4 |
EGT 4+ |
B1 |
EGT 1- |
B2 |
EGT 2- |
B3 |
EGT 3- |
B4 |
EGT 4- |
C1 |
EGT 5+ |
C2 |
EGT 6+ |
C3 |
EGT 7+ |
C4 |
EGT 8+ |
D1 |
EGT 5- |
D2 |
EGT 6- |
D3 |
EGT 7- |
D4 |
EGT 8- |
E1 |
EGT 9+ |
E2 |
EGT 10+ |
E3 |
EGT 11+ |
E4 |
EGT 12+ |
F1 |
EGT 9- |
F2 |
EGT 10- |
F3 |
EGT 11- |
F4 |
EGT 12- |
G1 |
|
G2 |
|
G3 |
|
G4 |
|
H1 |
Engine ground 3 |
H2 |
Engine ground 3 |
H3 |
engine ground 3 |
H4 |
EGT pins are regular pins and contacts. Cold junction compensation is done by a temperature sensor in thermal contact with these pins.
Part |
Molex Part nr |
Quantity |
Connector |
0643191218 |
1 |
Cable cover |
0643191201 |
1 |
Terminal / pin (big 0.5-1mm2) |
643231029 |
3 |
Terminal / pin (small 0.75mm2) |
643221029 |
24 |
MaxxECU PRO connector 3 (48-pin brown)
Position |
PRO connector 3 function |
|
A1 |
DIN/VR 4 |
|
A2 |
DIN/VR 5 |
|
A3 |
DIN 6 |
|
A4 |
DIN 7 |
|
B1 |
WBO2 2 RCAL |
|
B2 |
WBO2 2 IP |
|
B3 |
WBO2 2 VS |
|
B4 |
WBO2 2 COM |
|
C1 |
WBO2 2 Shield |
|
C2 |
+5V SENSOR SUPPLY 2 |
(peak 0.5A, max 150mA) |
C3 |
ANALOG in 5 (0-5V) |
|
C4 |
GPO 19 (12V) |
|
D1 |
ANALOG IN 6 (0-5V) |
|
D2 |
ANALOG IN 7 (0-5V) |
|
D3 |
ANALOG IN 8 (0-5V) |
|
D4 |
GPO 20 (12V) |
|
E1 |
GPO 10/WBO2 2 HTR PIN 4 |
|
E2 |
ANALOG IN 9 (0-5V) |
|
E3 |
ANALOG IN 10 (0-5V) |
|
E4 |
GPO 21 (12V) |
|
F1 |
INJECTOR OUT 15 |
|
F2 |
ANALOG IN 11 (0-5V) |
|
F3 |
ANALOG IN 12 (0-5V) |
|
F4 |
GPO 22 (12V) |
|
G1 |
INJECTOR OUT 14 |
|
G2 |
IGNITION OUT 11 |
|
G3 |
IGNITION OUT 9 |
|
G4 |
GPO 15 (12V) |
|
H1 |
INJECTOR OUT 13 |
|
H2 |
IGNITION OUT 12 |
|
H3 |
IGNITION OUT 10 |
|
H4 |
GPO 16 (12V) |
|
J1 |
INJECTOR OUT 16 |
|
J2 |
SENSOR GND |
|
J3 |
SENSOR GND |
|
J4 |
GPO 17 (12V) |
|
K1 |
INJECTOR OUT 10 |
|
K2 |
INJECTOR OUT 9 |
|
K3 |
KEY IN 12V |
|
K4 |
GPO 18 (12V) |
|
L1 |
INJECTOR OUT 11 |
|
L2 |
GPO 12/MOTOR 1 + |
|
L3 |
GPO 11/MOTOR 1 - |
|
L4 |
ENGINE GROUND 2 |
|
M1 |
INJECTOR OUT 12 |
|
M2 |
GPO 13/Motor 2 + |
|
M3 |
GPO 14/Motor 2 - |
|
M4 |
12V ECU 2 |
Part |
Molex Part nr |
Quantity |
Connector |
0643203319 |
1 |
Cable cover |
643201301 |
1 |
Terminal / pin (big 0.5-1mm2) |
643231029 |
8 |
Terminal / pin (small 0.75mm2) |
643221029 |
40 |
MaxxECU PRO connector 4 (32-pin black)
Position |
PRO connector 4 function |
Note |
A1 |
CAN 2 H |
|
A2 |
CAN 2 L |
|
A3 |
0-5v out 1 |
|
A4 |
0-5v out 2 |
|
B1 |
AIN 18 (0-5v) |
|
B2 |
AIN 17 (0-5v) |
|
B3 |
AIN 16 (0-5v) |
|
B4 |
AIN 15 (0-5v) |
|
C1 |
AIN 14 (0-5v) |
|
C2 |
AIN 13 (0-5v) |
|
C3 |
AIN 19 (temp) |
|
C4 |
AIN 20 (temp) |
|
D1 |
AIN 21 (temp) |
|
D2 |
AIN 22 (temp) |
|
D3 |
DIN 8 (switch) |
|
D4 |
ddin 9 (switch) |
|
E1 |
DIn 10 (switch) |
|
E2 |
Din 11 (switch) |
|
E3 |
+5v sensor supply 3 |
(peak 0.5A, max 150mA) |
E4 |
5-10v sensor supply |
|
F1 |
GPO 23-30 flyback |
|
F2 |
knock 1 |
Only available on REV10+ units |
F3 |
knock 2 |
REV10+ units = KNOCK 2, earlier rev = Sensor GND 3 |
F4 |
Sensor GND3 / knock ground |
REV10+ units = KNOCK GND, earlier rev = Sensor GND 3 |
G1 |
GPO 23 |
|
G2 |
GPO 24 |
|
G3 |
GPO 25 |
|
G4 |
GPO 26 |
|
H1 |
GPO 27 |
|
H2 |
GPO 28 |
|
H3 |
GPO 29 |
|
H4 |
GPO 30 |
Part |
Molex Part nr |
Quantity |
Connector |
0643193211 |
1 |
Cable cover |
0643191201 |
1 |
Terminal / pin (big 0.5-1mm2) |
643231029 |
8 |
Terminal / pin (small 0.75mm2) |
643221029 |
24 |
Molex parts
Terminals
Terminal / pin (small 0.5mm2) |
643221039 |
Terminal / pin (small 0.75mm2) |
643221029 |
Terminal / pin (big 0.5-1mm2) |
643231029 |
Terminal / pin (big 1-2mm2) |
643231039 |
Plugs
Plug (small) |
0643251010 |
Plug (big) |
0643251023 |
Tools
Removal tool (small terminals) |
638132400 |
Removal tool (big terminals) |
638132300 |
Crimp tool (big 0.5-1.0mm2) |
63811-8900 |
Crimp tool (big 1-2mm2) |
63811-9000 |
Crimp tool (small) |
63811-9200 |
