Note: Only available on MaxxECU PRO
Accelerometer orientation
Rotation mode
•right angles - Simple rotation mode.
•free rotation - Quaternation values can be entered manually, or use the rotation setup to calibrate the built-in accelerometer for any mounting orientation.
Forward
G sensor module direction data.
Right
G sensor module direction data.
Up
G sensor module direction data.
Accelerometer filter
filter level
Specifies the filter level. 1-64, a higher values means more filter.
Exponential smoothing alpha
Alpha smoothing value as an extra filtering option. A to high value will slow down the response from the sensor.
0.00 = no smoothing
0.90 - 0.95 = recommended smoothing value.
Examples

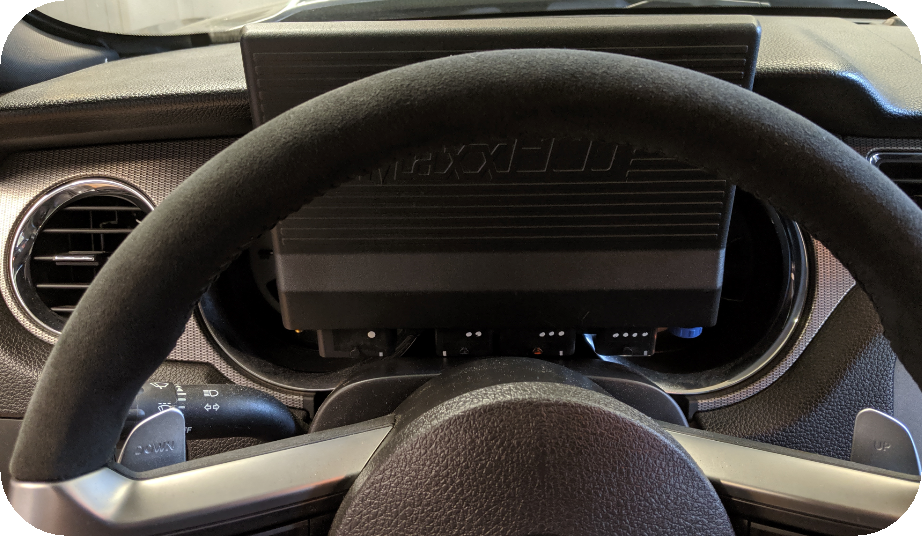

Free rotation example
Using the new free mode rotation setup, to calibrate the built-in accelerometer for any mounting orientation.
Right angles example
Flat mount option in vehicle direction
MTune setting for the above flat mount position.
Standing mount option in vehicle direction
MTune settings for the above standing mount position.
